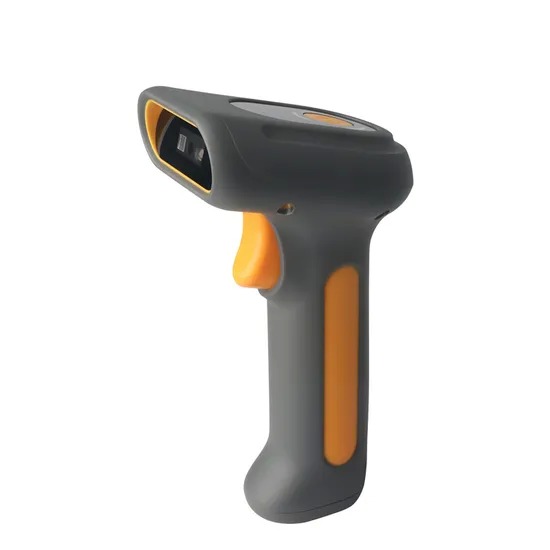

DS6530-1D 1D Barcode Scanner 300 Scans/Sec USB CCD

MOQ : 1

Model NO. : DS6530-1D

Interface Type : USB

Scan Speed : 300 scans/sec

Scan Element : CCD

Scan Type : Linear CCD Sensor

Resolution : 2500

Resolution Ratio : 3mil/0.076mm

Depth of Field : 30mm~700mm

Decoding Speed : 300times/S

Print Contrast : 20%

Weight : 230g

Dimension : L152mm * W66mm * H95mm

Communication Mode : USB,RS232

Power Supply : DC 5V@80mA

Operating Temperature : -20ºC to 50ºC

Contact Now

DS6530-1D is a high-performance 1D barcode scanner with leading CCD image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc

☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (4mil)
☆ Support multiple languages and systems.
☆ Interface: USB,RS232
☆ Widely used in supermarket, warehouse, mobile payment, chain stores

Performance

Communcation	USB
Scan Type	Linear CCD Sensor
Resolution	2500
Resolution	≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field	30mm~700mm
Decoding speed	300times/s
Scan Mode	Manual, continuous, auto-sense, flashing
Prompt method	Buzzer, LED, vibration
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Roll: ±30°,Pitch:±60°,Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Physical Parameter

Weight	About 230g(scanner)
Dimension	L152mm * W66mm * H95mm(scanner)
Communication Mode	USB,RS232
Interface Type	USB ,DB9
Power Supply	DC 5V@80mA(work)

Environmental

Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95%(non-condensing)
Transport vibration Test	10H@125RPM

Accessories List

Cable	USB Cable, used to connect the DS6530-1D to a host device.
	RS232 Cable, used to connect the DS6530-1D to a host device, with USB supply cable.

DS6530-1D 1D Barcode Scanner 300 Scans/Sec USB CCD

Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months

Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.

Q6: What are your strengths?
DYscan: We are a professional scanner manufacturer. The company is divided into different departments, each with its own director. The R&D department is responsible for the development of new products. The production department is responsible for the production and testing of products. The Marketing and Sales department consists of the sales team, and customer services.

Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug and play. No drivers need to be installed. It can be used in Windows, Mac OS, IOS, Linux, UNIX, Android, etc.
